Here we adopt 6 graphics cards and TB250-BTC for this crypto mining hardware installation.

Step 1.

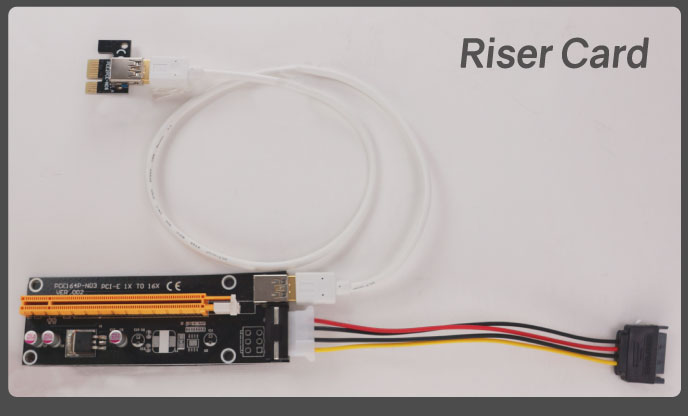

Please install every graphics card into the riser cards (as the picture below) respectivelly.

Step 2.

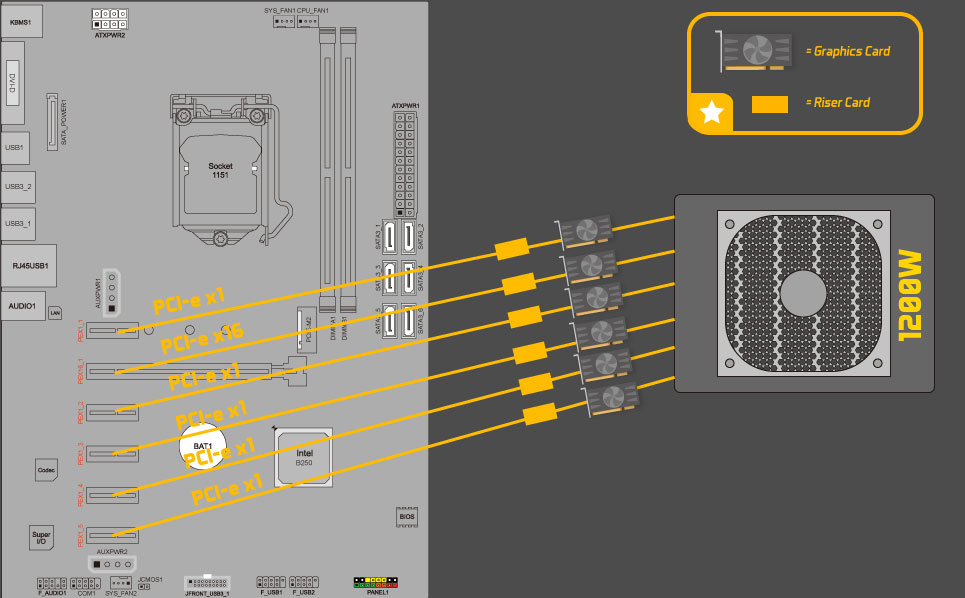

Connect the riser card with PCI-e X16 graphics card and the other five riser cards with PCI-e X1 graphics cards to the power supply.

Step 3.

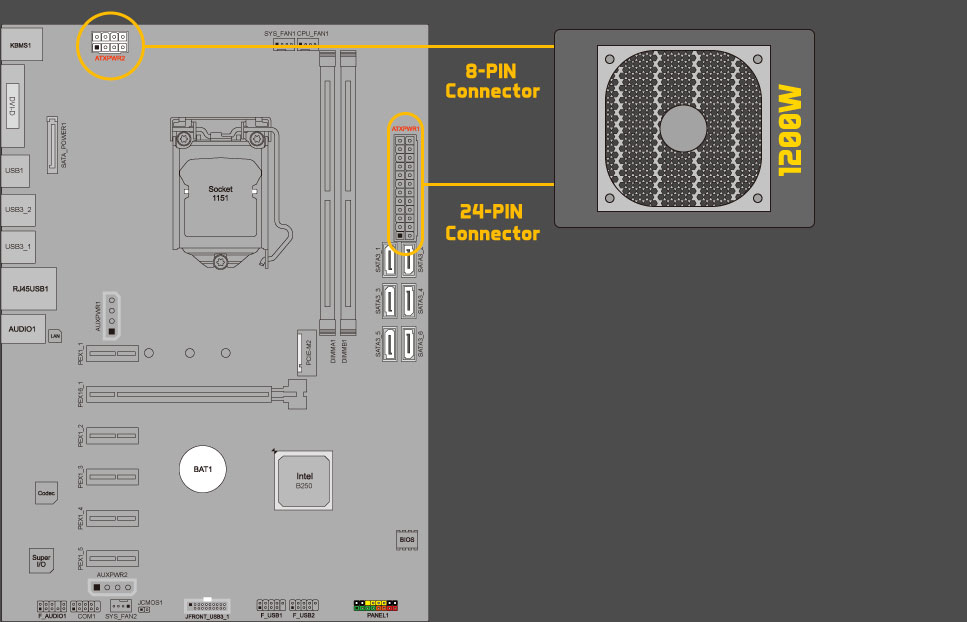

Connect 8-pin power connector and 24-pin power connector to the power supply.

Step 4.

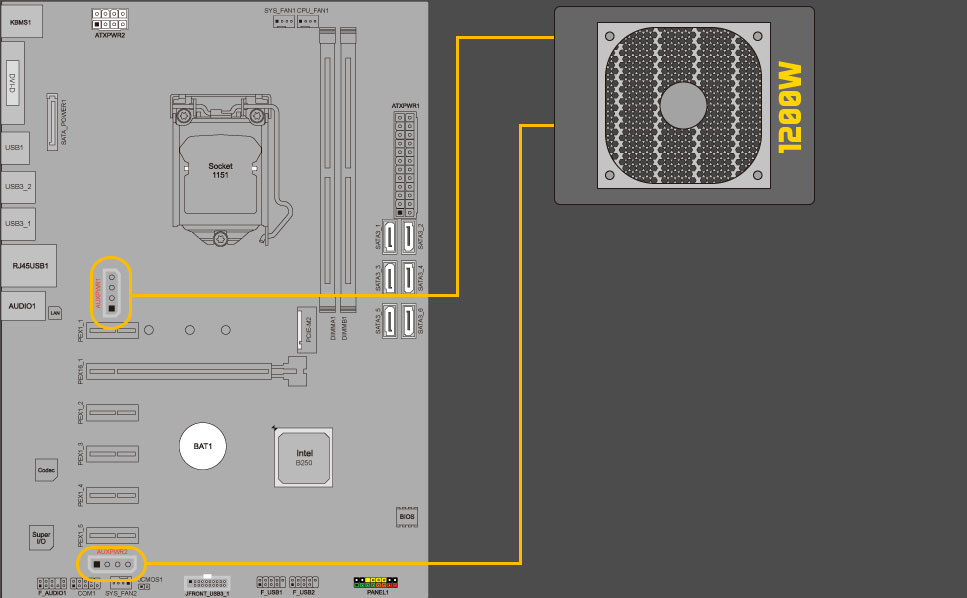

Connect 4-pin 12V AUXPWR 1 and 4-pin 12V AUXPWR 2 to the power supply.

* These two AUX power connectors are BIOSTAR unique design of graphics card power enhancement.

Step 5.

And the last step, turn on the power supply.

Step 6.

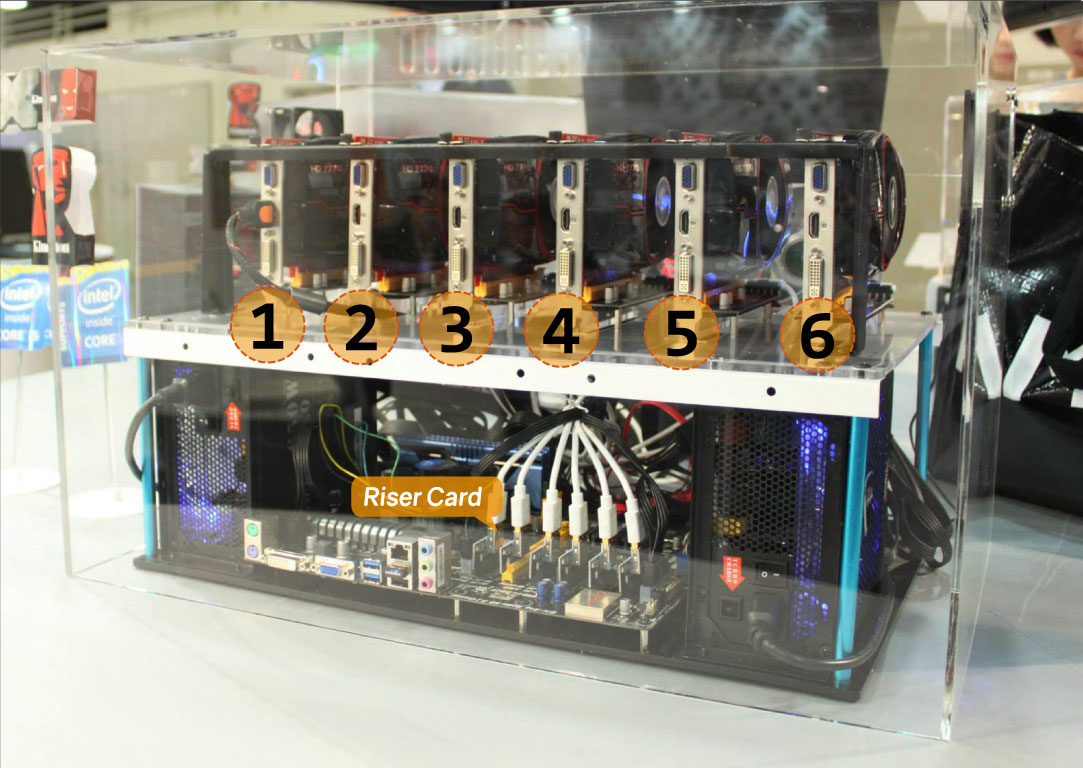

Get ready to make money with BIOSTAR Crypto Mining Motherboard!

To keep the mining rig operating stably, please install the system in an environment where there is a sufficient volume of air available to cool your rig. To top it off, you can use two industrial fans to make the air convection much efficient.
